SIGNAL 19" Comms Cabinet 18U 600 mm, hanging


Product Code: ENC18U600
Log in to view prices

Product Details


SIGNAL 19" Rack Cabinet 18U 600 mm, hanging

Distinguishing features:

  • Height:
    • 18U
  • Depth:
    • 600 mm
  • Width:
    • 600 mm
  • Carrying capacity: 60 kg
  • Self-assembling time ca 10 minutes

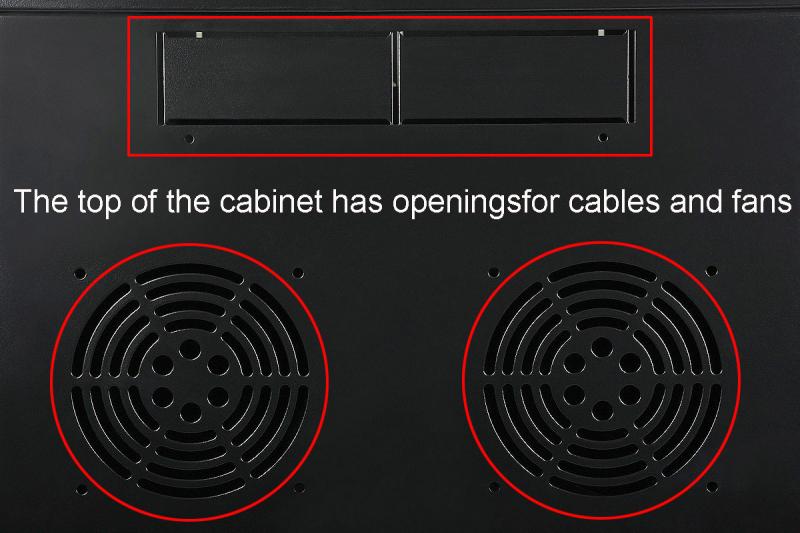

  • Holes for cables:
    • in rear panel
    • on top
    • in the bottom
  • Ventilation openings:
    • in side panels
    • in doors
  • Removable side panels
  • Removable rear panel
  • Convertible left/right swing door
  • The kit packed in one cardboard box
  • Front doors with door handle and lock
  • Side panels with locks
  • Two keys
  • Four rack rails for mounting devices (2x front, 2x rear)
    • Possibility to change the spacing between the front and rear rails
  • Marked distances (1U) on mounting rails
  • Grounding connector
  • Possibility to mount two fans
  • Wall mounting with:
    • mounting bracket for hanging cabinets (not included)
    • hangers (not included)

Increasingly, home LAN, TV, CCTV devices are compliant with RACK system and are mounted in such cabinets which ensure esthetic look and protection against accidental mechanical damage.

19" RACK cabinet suitable for mounting all sorts of devices in standard 19" rack housings, as well as some devices not compliant with this standard. Ideal for installing headends, for various kinds of equipment, also in home systems.

The cabinet can also house devices that are not in standard 19" rack housings, for example multiswitches, RF amplifiers, modulators, DVRs, servers. For this purpose the user should mount additional shelf/shelves available for this cabinet.

The rack cabinet has many openings ensuring adequate air circulation. Additionally, it is possible to install fans to increase the ventilation.

Non-rack devices can be mounted on the four-point mounted shelves, with a depth of 600 mm.

To ground the cabinet, the grounding connector should be connected to a ground system.

Self-assembly kit. All parts are shipped in single cardboard box.

The self-assembling time is typically less than 10 minutes.

Optional extras;

RACKFAN

RACKSTAT
