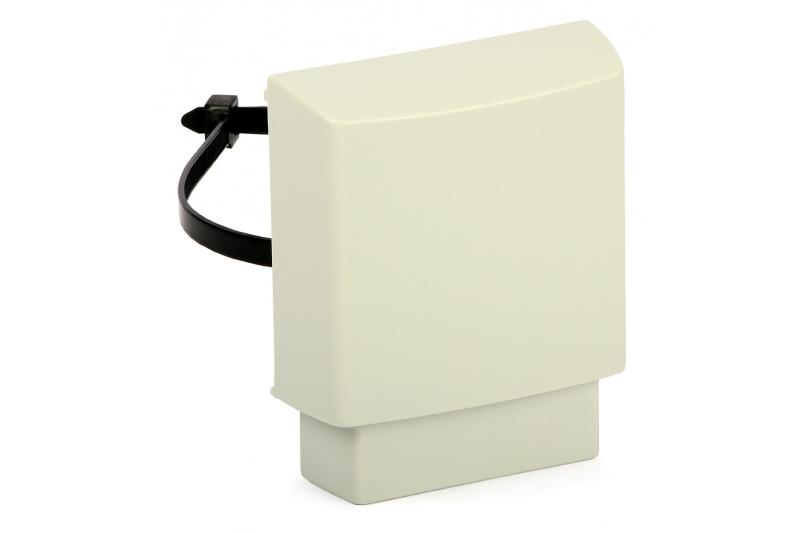

Terra MA082L Masthead Amplifier (FM VHFIII-UHF)


Product Code: TERMA082L
Log in to view prices

Product Details


The Terra MA082L masthead amplifier is dedicated for outdoor applications in individual antenna installations and small MATV systems (without an additional launch amplifier - up to a dozen outlets). It has common FM (88-108 MHz) and VHFIII (174-230 MHz) input, and UHF (470-790 MHz) input. The maximum gain is 20 dB in the FM and VHFIII bands, and 30 dB in the UHF band.

Thanks to built-in LTE filter (791- 862 MHz), the MA082L amplifier can be used in environments where LTE services cause problems with the reception of DVB-T broadcasts.

The die-cast housing provides high screening efficiency by preventing the penetration of interfering signals into the device. The amplifier also features low noise levels.

The MA082L amplifier can be powered from a typical AC/DC adapter (12VDC/100mA) or from a launch amplifier with 12 VDC power option for an preamplifier.

  • Power: 12 VDC, 60 mA
  • LTE filter (attenuation of signals over 790 MHz)
  • Max gain of 20 dB in FM and VHFIII bands, 30 dB in UHF band
  • Gain adjustment with potentiometers
  • Small size cast metal case put into compact size plastic housing
