Balun 16 Channel Passive


Product Code: BALUN16
Log in to view prices

Product Details

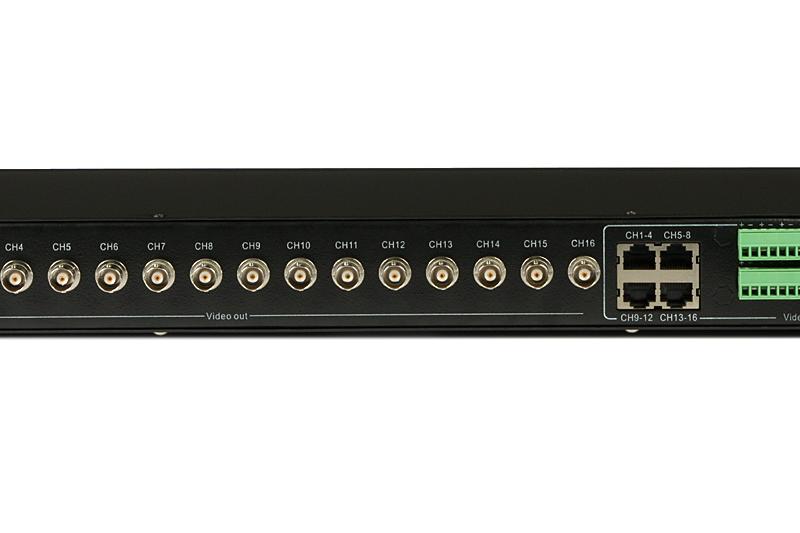

16-channel transmitter or receiver for transmitting and receicing video signals from 16 cameras via four 8-wire CAT5 UTP cables. When used as the transmitter in conjunction with an active receiver, it can send the video signals over distances up to 1500 m, preserving their original quality. The device matches the 75 ohm impedance of the unbalanced source or load to the impedance of the balanced lines formed by the pairs of the UTP cable.

  • interference-free transmission of 16 video signals
  • simpler and cheaper wiring - the 16 video channels are transmitted via four UTP CAT5e cables

  • range of transmission with passive baluns up to 330 m
  • range of transmission with active baluns up to 1500 m
  • passive components - no power supply needed
  • built-in anti-interference filters
  • possibility of connecting UTP cables via RJ-45 connectors or screw terminals
  • can be rack mounted using brackets included
