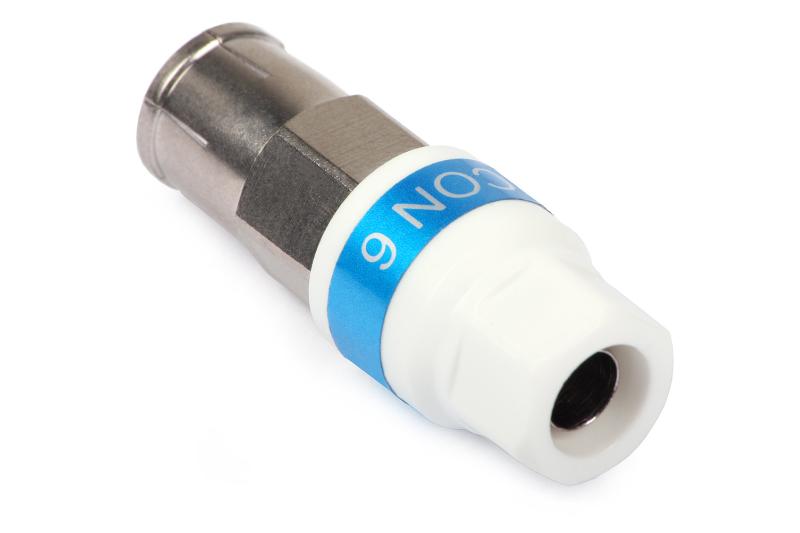

Cabelcon Coax Socket for RG-6 Self-Install

The CABLECOAXSKT antenna socket from Cabelcon, Denmark, is intended for applications in a home antenna system. The patented design, based on "Self-Install" concept, ensures a professional, durable connection. The important thing is, no compression tool is needed.

Installation instructions

Installation steps: preparing the cable end, sliding the plastic cap onto the cable, inserting the socket body so that the sleeve enters under the braid, screwing the cap onto the threaded body. All the operations take no more than 15 seconds. (see picture)

The connector installed properly is fully integrated with the cable, however the socket is reusable - the cap can be unscrewed and the plug pulled off. It may be useful, for example, when the antenna cable must be shortened or replaced.

The cable can be quickly prepared for the installation with the use of one of the tools, WIRESTRIPPER or CABLECONNWRENCH (the latter is also a wrench for tightening F connectors).

Distinguishing features

• class A screening effectiveness,
• 3 GHz band,
• no need for a compression tool,
• reusable,
• high quality and reliability,
• connection stability,
• designed for cables with dielectric diameter of 4.9-5.1 mm.

The connector is compatible with the following cables:

• Triset-113 PVC
• RG-6 PVC

Specifications
