Roofmount 1.2M. Mast For Flat Roofs


Product Code: ROOFMOUNT3
Log in to view prices

Product Details

Roofmount 1.2M. Mast For Flat Roofs

The ROOFMOUNT3 is very convenient for mounting terrestrial TV and communications / Wi-Fi antennas on flat, solid roofs. The installer can use it where there is no possibility of attaching a typical mast to some elements on the roof (there are no suitable chimneys, walls etc.) and the surface of the roof cannot be penetrated. The ROOFMOUNT3 cannot be used for mounting satellite dishes.

The mast hardware has to be ballasted with concrete blocks with dimensions of 38x24x12 cm, 38x20x12 cm, or 30x24x12 cm, from 4 to 8 pieces. The blocks inserted into the base have to be held together with a plastic strap.

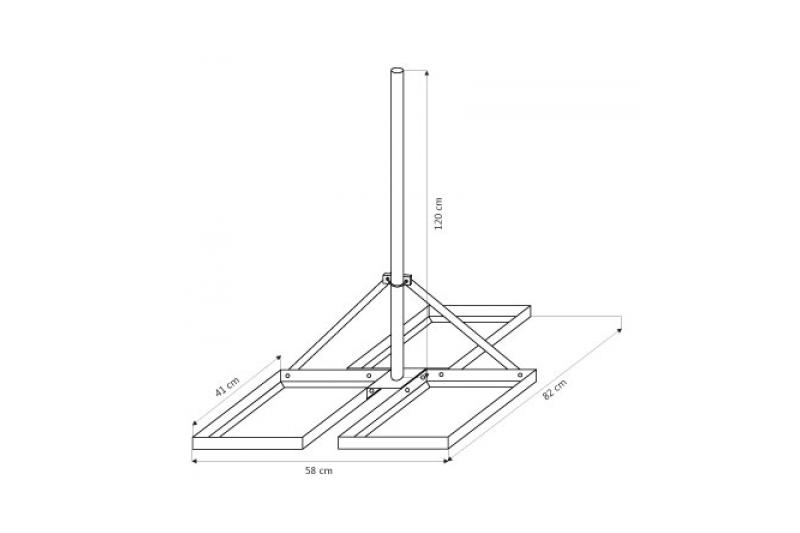

The vertical steel tube is welded to a flange made of 3 mm steel sheet. The flange is to be screwed with two steel frames made of solid angle sections (39x25 cm). The steel components are galvanized (zinc plated). The height of the mast is 1.2 m. A plastic cap prevents water from entering the interior of the tube

Specifications

  • Height: 1.2 m
  • Full size of the base: 58x41 cm
  • Internal dimensions of each frame (for concrete blocks): 39x25 cm
  • Concrete blocks have to be purchased separately in a local market
