Ultimode Quick Assembly SC-APC Connector


Product Code: FIBQCSCAPC
Log in to view prices

Product Details

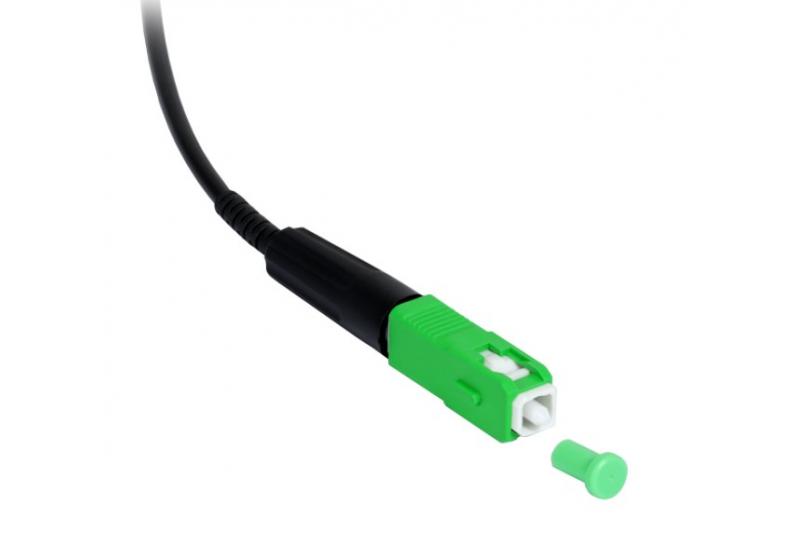

Ultimode Quick Assembly SC/APC Connector

  • for round cables with a diameter up to 3 mm and 3x2 mm flat cables
  • for single-mode systems, regardless of the fiber standard
  • quick and easy installation (about 3 minutes)
  • minimum loss 0.25 dB (typically 0.5 dB)
  • repeatable connection quality

Ultimode quick assembly connectors are suitable for terminating optical fibre cables. They are an alternative to pigtail connections or SoC (Splice on Connector) which require the use of a fibre optic splicer. This solution is ideal for CCTV, LAN and FTTH systems in which keeping the connection loss below 0.1 dB is not critical for the operation or acceptance of the installation. The actual loss of the quick assembly connectors of 0.25 - 0.5 dB is not an issue for typical point-to-point switch-to-switch, camera-to-switch, media converter-to-switch connections and so on.

Compared to typical splicing of pigtails, the key advantage of this solution no need to use joint boxes to protect the connection of the pigtail with the fiber of the cable. This saves the time to make the connection and money (the cost of a connector vs. purchasing: the pigtail, splice protector, joint box, adapter, patch cable). For that reason the quick assembly connectors are most commonly used for connecting FTTH subscribers or in CCTV systems, where limited space in media converter boxes prevents installation of fiber optic boxes.

Typically, the quick assembly connectors are used for single-fiber or multi-fiber cables, but using only one fiber (250 μm diameter). It is possible to use several connectors on several fibers within one cable, but the fibers have to be with a primary coating with a diameter of 900 μm. The kit includes a suitable adapter for secure mounting of the connector on such fiber. The use of quick assembly connectors on multiple 250 μm fibers is not recommended.

Tools required to make connections with Ultimode connectors:

  • Stripper – for cutting and stripping the outer jacket, removing the buffer of the cladding,
  • Ultimode Fast measure for quick and easy measurement of the fibre stripping and cutting length,
  • Dust-free wipes and IPA solvent cleaner for fibre cleaning before cutting,
  • Fibre optic cleaver for precise fiber cutting.

Optionally:

  • Scissors for Kevlar - very useful for cutting aramid fibres,
  • Visual fault locator for quick testing of the connections made (recommended!)
  • Fibre scraps trash can
