ATK-LOG ALP 5G Aerial 10m Cable, SMA plugs


Product Code: ATKALP5G10
Log in to view prices

Product Details


ATK-LOG ALP 5G MIMO 2x2 Aerial

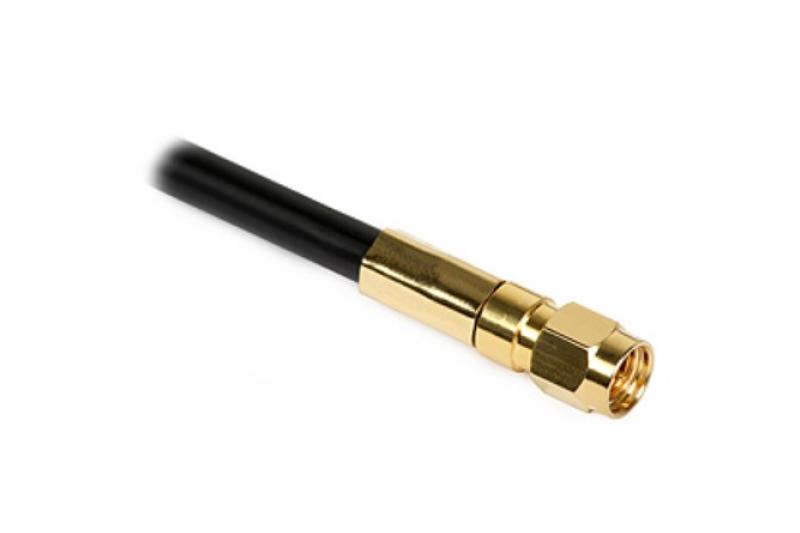

The included cables coming out from each of the two antenna units is 10M long and are terminated with SMA plugs

The MIMO antenna consists of two identical units - one of them should be mounted vertically, the second - horizontally. The distance between the units should be at least 37 cm.

The ATK-LOG ALP 5G MIMO logarithmic antenna is designed for use in GSM/DCS/UMTS/HSDPA/LTE/5G systems operating in the 698-3800 MHz range. It effectively solves the common problem of inadequate signal strength at the installation location of a modem with a GSM/UMTS/LTE/5G card. If this is the case, it is usually enough to connect an antenna to the modem to achieve a sufficient signal strength. In addition to that, the antenna has 2 cables with a length of 10 meters, terminated with an SMA plug.

The antenna is designed to work with LTE/5G modems (equipped with two antenna connectors), telephones and GSM, DCS, 3G, LTE, 5G modems.

MIMO (Multiple Input, Multiple Output) – is a method for multiplying the capacity of a radio link using multiple transmitting and receiving antennas to exploit multipath propagation.

Distinguishing features:

  • Frequency range: 698-3800 MHz,
  • Gain: 9 dBi,
  • Cable length: 10 m,
  • SMA plug,
  • VSWR: max 2.3,
  • MIMO technology,
  • DC-shorted,
