Processor |
CPU |
Montage M88CS8051B-T00D |
|
Flash Memory |
8MB |
|
DDR2 |
1GB |
DVB-S/S2 |
Input Frequency: |
950 ~ 2150MHz |
Tuner |
Input level: |
-80 ~ -20dBm |
|
Input impedance |
75 Q |
DVB-T/T2 |
VHF: |
174 ~ 230MHz, |
Tuner |
UHF: |
470 ~ 862MHz |
|
RF input Signal Level: |
-78 ~ -5dBm |
Channel |
Demodulation |
QPSK, BPSK, 16PSK |
Decoding |
FEC mode |
DVB-S 1/2, 2/3, 3/4, 5/6, 7/8 |
|
|
DVBS2X: 1/23/5,2/3,3/4, 4/5, 5/6, 8/9, 9/10(QPSK)3/5 ,2/3, 3 |
|
|
4, 5/6, 8/9, 9/10 (8PSK) |
|
Symbol Rate |
DVB-S: 2.0 ~ 45 MS/s |
|
Demodulation |
QPSK, 8PSK, DVB-S2:1030Mb/s(QPSK),10-31Mb/s (8PSK) |
Demultiplexer |
Standard |
ISO/IEC 13818-1 |
|
Input Max. |
Bit Stream Rate 100Mbps (Serial) / 12. 5Mbps (Parallel) |
Video |
Standard |
ISO/IEC 13818-2, MPEG-2 [email protected], MPEG-4, AVC (MP L4.1) |
Decoding |
Aspect Ratio |
4:3, 16:9 |
|
Video Format |
PAL-B / NTSC-M / PAL-N / PAL-M |
|
Video Resolution |
1080p, 1080i, 720p, 480p / 576p, 480i / 576i SD, compatible |
|
|
|
Audio Decoding |
Standard |
ISO/IEC 13818-3 |
|
Decoding |
MPEG-1 Layer | and II, MPEG-2, MPEG-4 AAC |
|
Output Mode |
LPCM, RAW |
|
Sampling Frequency |
32, 44.1, 48KHz |
|
Volume Level |
24 Levels |
AV Output |
Video de emphasis |
CCIR REC.405-1, 625LINES |
|
Video bandwidth |
5.5MHz |
|
Video output impedance |
75O |
|
Video output level |
1.0Vp-p |
|
Audio output |
Stereo |
|
Audio output frequency |
20Hz ~ 20KHz |
|
Audio output impedance |
Low |
|
Audio output level |
A 1.0Vrms ± 2dB into 10K. |
|

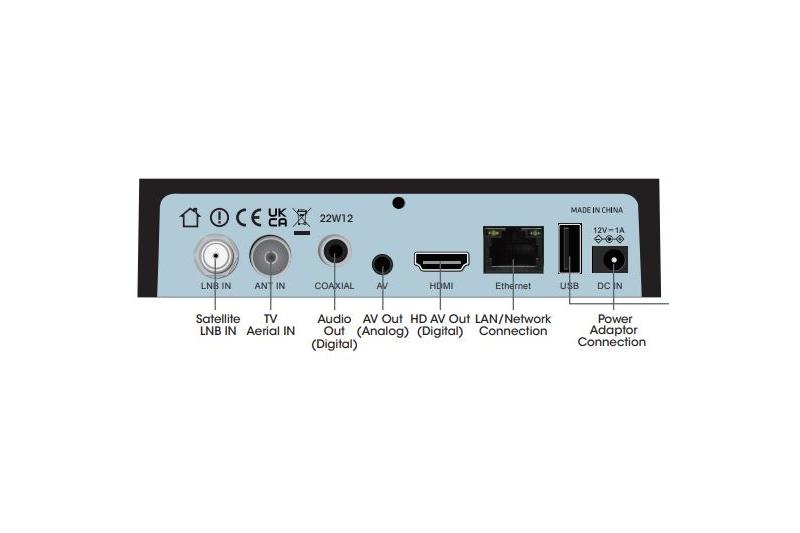

Panel Interface |
• 1x Mini AV • 1x HDMI • 1x LNB In • 1x ANT In • 2x USB 2.0 Port |
|
|
• 1x Ethernet • 1x DC-IN • 1x Coaxial |
Power |
Power input Specification |
12V/1A DC In Max. 8W |
|
|
|
