WIRELESS |
|
Standards |
Wi-Fi 5 |
|
IEEE 802.11ac/n/a 5 GHz |
|
IEEE 802.11n/b/g 2.4 GHz |
WiFi Speeds |
AC1200 |
|
5 GHz: 867 Mbps (802.11ac) |
|
2.4 GHz: 300 Mbps (802.11n) |
WiFi Range |
2 Bedroom Houses |
|
4× Fixed Antennas |
|
Multiple antennas form a signal-boosting array to cover more directions and large areas |
WiFi Capacity |
Medium |
|
Dual-Band |
|
Allocate devices to different bands for optimal performance |
Working Modes |
Router Mode |
|
Access Point Mode |
HARDWARE |
|
Processor |
Single-Core CPU |

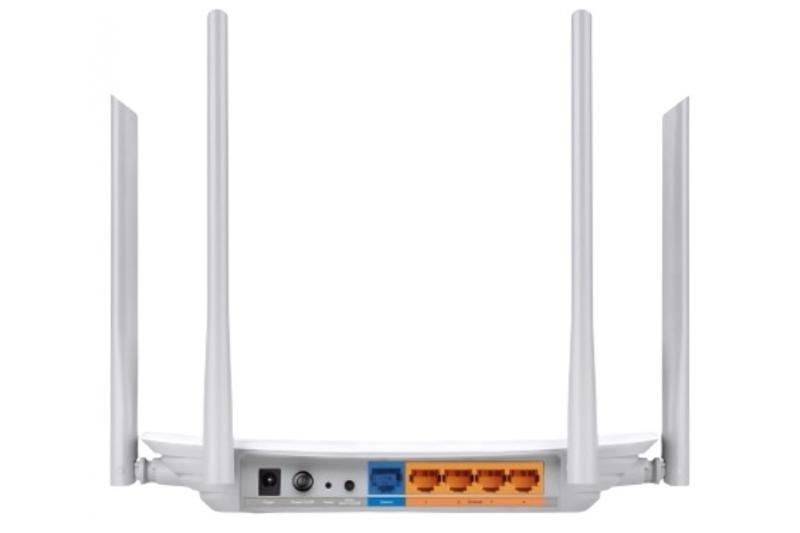

Ethernet Ports |
1× 10/100 Mbps WAN Port |
|
4× 10/100 Mbps LAN Ports |
Buttons |
WPS/Wi-Fi Button |
|
Power On/Off Button |
|
Reset Button |
Power |
9 V ? 0.85 A |
SECURITY |
|
WiFi Encryption |
WEP |
|
WPA |
|
WPA2 |
|
WPA/WPA2-Enterprise (802.1x) |
Network Security |
SPI Firewall |
|
Access Control |
|
IP & MAC Binding |
|
Application Layer Gateway |
Guest Network |
1× 5 GHz Guest Network |
|
1× 2.4 GHz Guest Network |
SOFTWARE |
. |
Protocols |
IPv4 |
|
IPv6 |
Parental Controls |
URL Filtering |
|
Time Controls |
WAN Types |
Dynamic IP |
|
Static IP |
|
PPPoE |
|
PPTP |
|
L2TP |
Quality of Service |
QoS by Device |
NAT Forwarding |
Port Forwarding |
|
Port Triggering |
|
DMZ |
|
UPnP |
IPTV |
IGMP Proxy |
|
IGMP Snooping |
|
Bridge |
|
Tag VLAN |
DHCP |
Address Reservation |
|
DHCP Client List |
|
Server |
DDNS |
NO-IP |
|
DynDNS |
Management |
Tether App |
|
Webpage |
|
Check Web Emulator> |
OTHER |
. |
System Requirements |
Internet Explorer 11 , Firefox 12.0 , Chrome 20.0 , Safari 4.0 , or other JavaScript-enabled browser |
|
Cable or DSL Modem (if needed) |
. |
Subscription with an internet service provider (for internet access) |
Certifications |
FCC, CE, RoHS |
Environment |
Operating Temperature: 0?~40? (32? ~104?) |
|
Storage Temperature: -40?~70? (-40? ~158?) |
|
Operating Humidity: 10%~90% non-condensing |
|
Storage Humidity: 5%~90% non-condensing |
TEST DATA |
. |
WiFi Transmission Power |
CE EIRP: |
|
<20dBm(2.4GHz) |
|
<23dBm(5GHz) |
|
FCC: |
|
<30dBm(2.4GHz & 5GHz) |
WiFi Reception Sensitivity |
5GHz: |
|
11a 54M: -73dBm |
|
11ac VHT20 MCS8: -68dBm |
|
11ac VHT40 MCS9: -64dBm |
|
11ac VHT80 MCS9: -60dBm |
|
11g 54M: -76dBm |
|
11n HT20 MCS7: -74dBm |
|
11n HT40 MCS7: -71dBm |
PHYSICAL |
|
Dimensions (W×D×H) |
9.1 × 5.7 × 1.5 in |
. |
(229.9 × 144.2 × 36.9 mm), |
Package Contents |
Wi-Fi Router Archer C50 |
. |
Power Adapter |
. |
RJ45 Ethernet Cable |
. |
Quick Installation Guide |
